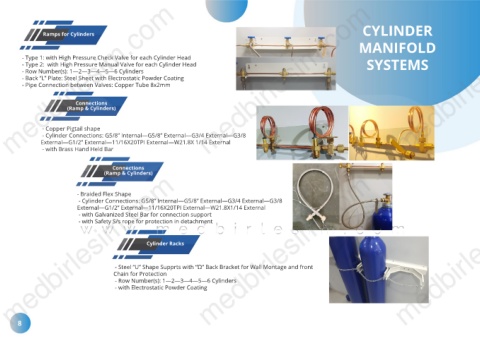

CYLINDER

Ramps for Cylinders
MANIFOLD

- Type 1: with High Pressure Check Valve for each Cylinder Head
- Type 2: with High Pressure Manual Valve for each Cylinder Head SYSTEMS
- Row Number(s): 1—2—3—4—5—6 Cylinders
- Back “L” Plate: Steel Sheet with Electrostatic Powder Coating medbirlesim.com medbirlesim.com
- Pipe Connection between Valves: Copper Tube 8x2mm

Connections
(Ramp & Cylinders)

- Copper Pigtail shape
- Cylinder Connections: G5/8” Internal—G5/8” External—G3/4 External—G3/8
External—G1/2” External—11/16X20TPI External—W21.8X 1/14 External
- with Brass Hand Held Bar

Connections
(Ramp & Cylinders)
8 medbirlesim.com

- Braided Flex Shape
- Cylinder Connections: G5/8” Internal—G5/8” External—G3/4 External—G3/8
External—G1/2” External—11/16X20TPI External—W21.8X1/14 External
- with Galvanized Steel Bar for connection support
- with Safety S/s rope for protection in detachment

Cylinder Racks medbirlesim.com medbirlesim.com

- Steel “U” Shape Supprts with “Ώ” Back Bracket for Wall Montage and front
Chain for Protection
- Row Number(s): 1—2—3—4—5—6 Cylinders
- with Electrostatic Powder Coating medbirlesim.com medbirlesim.com
