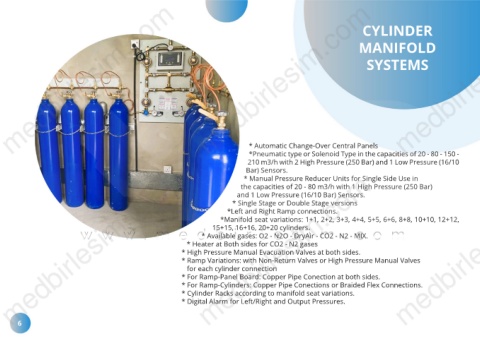

CYLINDER

MANIFOLD

SYSTEMS

* Automatic Change-Over Central Panels
*Pneumatic type or Solenoid Type in the capacities of 20 - 80 - 150 -
210 m3/h with 2 High Pressure (250 Bar) and 1 Low Pressure (16/10
Bar) Sensors.
medbirlesim.com
6 medbirlesim.com
* Manual Pressure Reducer Units for Single Side Use in
the capacities of 20 - 80 m3/h with 1 High Pressure (250 Bar)
and 1 Low Pressure (16/10 Bar) Sensors.
* Single Stage or Double Stage versions
*Left and Right Ramp connections.
*Manifold seat variations: 1+1, 2+2, 3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12,
15+15, 16+16, 20+20 cylinders.
* Available gases: O2 - N2O - DryAir - CO2 - N2 - MIX.
* Heater at Both sides for CO2 - N2 gases
* High Pressure Manual Evacuation Valves at both sides. medbirlesim.com
* Ramp Variations: with Non-Return Valves or High Pressure Manual Valves
for each cylinder connection
* For Ramp-Panel Board: Copper Pipe Conection at both sides.
* For Ramp-Cylinders: Copper Pipe Conections or Braided Flex Connections.
* Cylinder Racks according to manifold seat variations.
* Digital Alarm for Left/Right and Output Pressures. medbirlesim.com
