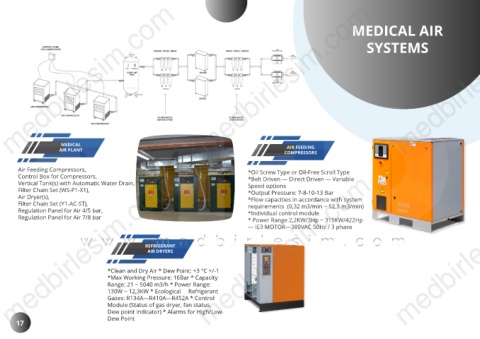

MEDICAL AIR
SYSTEMS
MEDICAL
AIR PLANT AIR FEEDING
COMPRESSORS
Air Feeding Compressors, *Oil Screw Type or Oil-Free Scroll Type
Control Box for Compressors, *Belt Driven — Direct Driven — Variable
medbirlesim.com
Vertical Tank(s) with Automatic Water Drain, Speed options
Filter Chain Set (WS-P1-X1), *Output Pressure: 7-8-10-13 Bar
Air Dryer(s), *Flow capacities in accordance with system
Filter Chain Set (Y1-AC-ST), requirements (0,32 m3/min ~ 52,3 m3/min)
Regulation Panel for Air 4/5 bar, *Individual control module
Regulation Panel for Air 7/8 bar * Power Range 2,2KW/3Hp ~ 315KW/422Hp
— IE3 MOTOR—380VAC 50Hz / 3 phase
REFRIGERANT
AIR DRYERS medbirlesim.com medbirlesim.com
*Clean and Dry Air * Dew Point: +3 °C +/-1
*Max Working Pressure: 16Bar * Capacity
Range: 21 ~ 5040 m3/h * Power Range:
130W ~ 12,3KW * Ecological Refrigerant
Gases: R134A—R410A—R452A * Control
Module (Status of gas dryer, fan status,
Dew point indicator) * Alarms for High/Low
Dew Point
